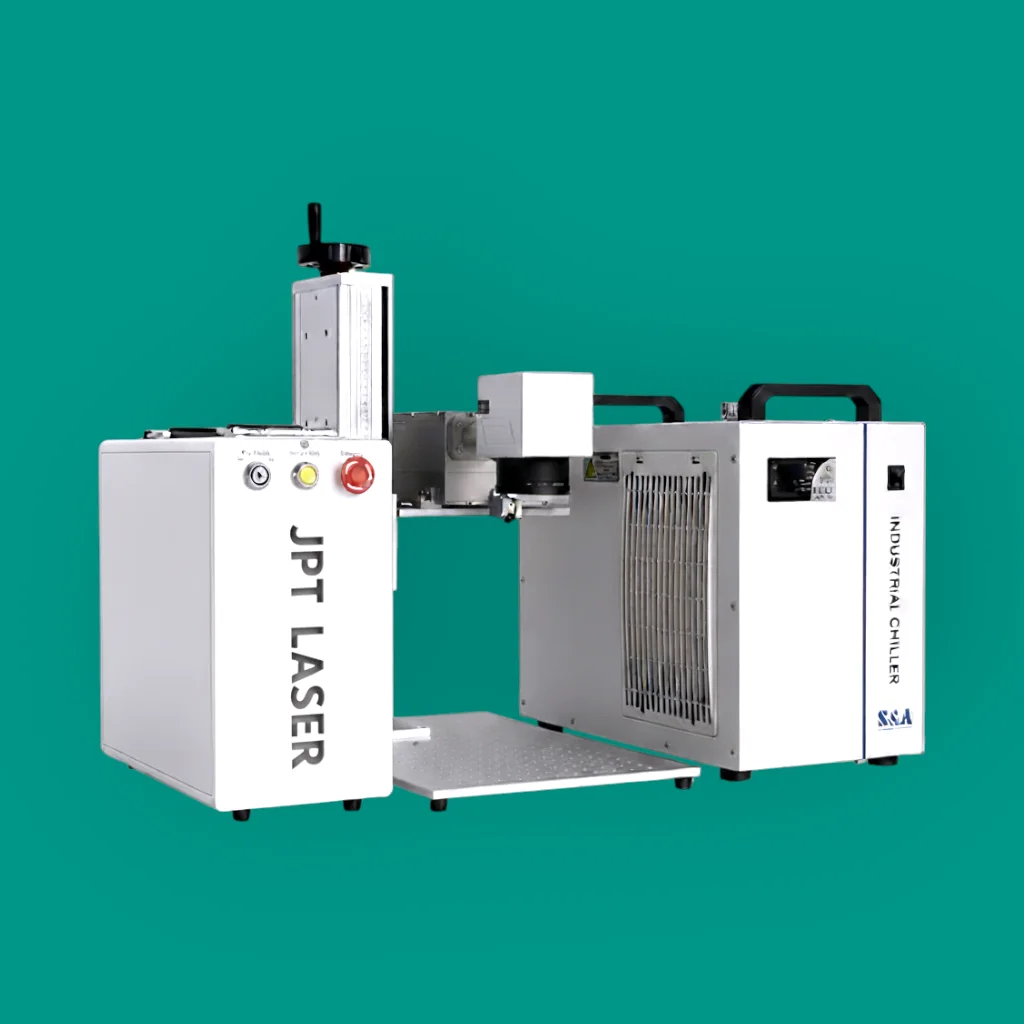

10W UV Laser Machine (JPT Seal-355-10S)
$9,200.00
Precision Throughput. 10W water-cooled UV is the ideal balance of speed and cold marking quality. Essential for reliable, high-volume processing of plastics, glass, and ceramics. Minimize HAZ and maximize production efficiency.
More views
Overview
The 10W UV Laser is the production-tier entry point in our UV catalog, built around the JPT Opto-Electronics Seal-355-10S source. This is a frequency-tripled Nd:YVO4 DPSS laser at 355 nm wavelength with Q-switched nanosecond pulses and TEM00 spatial mode. The 10W tier moves up from the air-cooled Lark-355-5A at 5W to a water-cooled architecture with integrated 500 W chiller, which is the practical inflection point where UV power production requires forced liquid cooling.
Buyers reach the 10W UV tier when small-batch capability from the 5W is no longer enough for production volume. The 10W doubles average power versus the 5W and shifts the pulse frequency range up to 40 to 300 kHz (versus 5W’s 20 to 200 kHz), which combined with the larger beam diameter (0.55 mm) means cycle times on production marking workloads improve roughly 80% to 100% over the 5W tier. Typical workloads: glass and crystal marking at production volumes, PCB and FR4 serialization at line speed, plastic component cold marking for medical device traceability, ceramic substrate marking for electronics, and polymer film processing.
What you get from JPT Laser Shop: a verified JPT Seal-355-10S source with traceable serial number, the integrated 500 W water chiller (sealed, no external plumbing required), the Sino-Galvo SG7110 scanning head, DDP shipping with customs and duties paid for US, Canada, and EU buyers, plus an 18-month warranty on both UV source and machine. We are an authorized JPT distributor; the Seal-355-10S in your machine is the genuine JPT source verified against JPT’s published datasheet on en.jptoe.com.
Technical specifications
Laser source, JPT Seal-355-10S
| Source model | JPT Opto-Electronics Seal-355-10S |
|---|---|
| Laser type | UV DPSS, Q-switched nanosecond (frequency-tripled Nd:YVO4) |
| Wavelength | 355 nm |
| Average output power | > 10 W at 60 kHz |
| Pulse width | < 20 ns at 60 kHz |
| Pulse frequency range | 40 to 300 kHz |
| Spatial mode | TEM00 |
| Beam quality M² | <= 1.2 |
| Beam diameter | 0.55 plus-minus 0.15 mm |
| Beam full divergence angle | <= 2 mrad |
| Beam circularity | > 90% |
| Polarization ratio | > 100:1, horizontal |
| Average power stability (24h) | RMS <= 3% |
| Pulse-to-pulse stability | RMS <= 3% at 60 kHz |
| Cooling method | Water-cooled (500 W chiller capacity, integrated) |
| Supply DC voltage | 36 V |
| Maximum power consumption | < 250 W |
| Source net weight | 8.8 kg |
| Source dimensions | 290 × 180 × 114 mm |
Scanner + complete machine
| Scanner | Sino-Galvo SG7110, 10 mm aperture, plus-minus 11° scan angle |
|---|---|
| Marking speed | up to 6000 mm/s |
| Working area | 175 × 175 mm with 175 mm lens; 70/110/210/300 mm options |
| Power input | 110 to 240 V AC, 50/60 Hz |
| Cooling | Integrated 500W water chiller (sealed) |
| Software | EZCad 2 included |
| Warranty | 18 months on JPT UV source and machine |
What this machine can do
Glass and crystal production marking
Perfume bottles, awards, decorative glass, crystal pieces at production volumes. The 10W tier handles 150 to 400 pieces per shift depending on mark complexity.
PCB and FR4 line-speed serialization
Electronics PCB substrate marking with date codes, lot numbers, and 2D data matrix codes at production line speeds. UV does not damage thin copper traces or substrate dielectric.
Medical device plastic marking
UDI codes, batch markings, and serialization on polymer medical devices. Cold marking process preserves the substrate without thermal damage that could affect device function or biocompatibility.
Ceramic electronics substrate marking
Alumina ceramic substrates for electronics, ID marks on industrial ceramic components, identification on dental ceramic. UV cold marks ceramic without cracking.
Polymer film and packaging marking
Date codes and product identification on PET, polyethylene, and polypropylene films used in packaging. Tetra Pak class production marking is a canonical 10W UV workload.
How this compares to adjacent models
| Specification | 5W UV (Lark-355-5A) | ★ This machine 10W UV (Seal-355-10S) |
15W UV (Seal-355-15S) | 20W UV (Seal-355-20S) |
|---|---|---|---|---|
| Best for | Small-batch entry UV | Production glass + PCB + plastic | Higher-volume production | Top UV production tier |
| Source model | Lark-355-5A | Seal-355-10S | Seal-355-15S | Seal-355-20S |
| Average power | > 5 W | > 10 W | > 15 W | > 20 W |
| Frequency range | 20-200 kHz | 40-300 kHz | 40-300 kHz | 40-300 kHz |
| Cooling | Air-cooled | Water (500W chiller) | Water (1000W chiller) | Water (1000W chiller) |
| Source weight | 6.5 kg | 8.8 kg | 9.8 kg | 15 kg |
| Warranty | 18 months | 18 months | 18 months | 18 months |
Practical guidance: choose 10W UV when production volume has outgrown the 5W tier. Step up to 15W or 20W for higher-volume work where the additional power justifies the larger chiller. Stay at 5W if production volumes are below 200 units per shift and you want to skip chiller maintenance. Full laser comparison →
What’s in the box
- 2 fused-silica (quartz) field lenses of your choice from 70, 110, 175, 210, or 300 mm
- 1 rotary attachment: D60, D80, or D100
- Motorized Z-axis
- UV-rated safety glasses (355 nm rated)
- Foot pedal
- Integrated 500W water chiller (sealed, no external plumbing)
- Marking head, USB + Ethernet + region power cable
- EZCad 2 USB key
- Quick-start guide + chiller-loop maintenance instructions
- Cleaning kit, spare lens wipes
- 18-month warranty registration
Software and upgrade options
This UV machine ships with the standard Sino-Galvo SG7110 galvo head and EZCad 2 software included on USB. Unlike the fiber catalog, the UV catalog does not offer an intermediate 2.5D upgrade; UV applications either work on flat surfaces (the standard head is sufficient) or require full 3D dynamic focus (Feeltek upgrade below).
Base configuration: SG7110 head + EZCad 2 + LightBurn via adapter
The standard configuration handles all flat-surface UV marking. EZCad 2 is the UV control software and has dot-matrix raster and photo-engraving modes well suited to UV-sensitive materials. LightBurn is supported via a USB adapter for operators who prefer that workflow.
3D upgrade: Feeltek FR10-U dynamic-focus head + LenMark (USD 5,500)
The FR10-U steers focus in software (LenMark) and uses no swappable field lens — up to a 600 × 600 mm field.
This upgrade replaces the standard SG7110 with the Feeltek FR10-U 3D dynamic-focus head. This is the UV-specific Feeltek model with optical coatings and beam-path tuning for the 355 nm wavelength. The upgrade adds LenMark software (Feeltek’s controller-side 3D mapping software). What you gain: continuous focal-length adjustment as the galvo mirrors point the UV beam across a curved or three-dimensional workpiece. UV is the right wavelength for marking glass, ceramic, clear plastics, silicone, and coated metals; the 3D head extends that capability to round, domed, or contoured versions of those workpieces.
When to choose the 3D upgrade: production volume on curved workpieces in UV-suited materials. Perfume bottles, cosmetic packaging, wine bottle accents, watch case-backs in ceramic, pharmaceutical vials, glassware for hospitality and luxury brands. If you are running batches of dozens to thousands of curved UV-suitable parts per shift, the 3D head dramatically cuts cycle time versus repositioning the workpiece between focal heights. For one-off curved jobs the standard fixed-focus head still works but is much slower per piece.
Our 3D UV engraving guide walks through the complete workflow from CAD model to engraved curved part using the Feeltek and LenMark pipeline.
Marking area by lens
The included lens choice determines the marking area on the workpiece. Every JPT UV machine ships with two lenses of your choice from the standard set; the 175 mm lens is included by default unless you specify otherwise at checkout.
| Lens focal length | Marking area | Best for |
|---|---|---|
| 70 mm | 70 x 70 mm | Small parts: micro-text on electronics, fine-detail glass marking |
| 110 mm | 110 x 110 mm | Medium UV work: small bottles, PCB boards, electronic enclosures |
| 175 mm (default) | 175 x 175 mm | General UV production: cosmetic packaging, mid-size glass and plastic parts |
| 210 mm | 210 x 210 mm | Larger UV parts: wine bottle accents, larger ceramic panels |
| 300 mm | 300 x 300 mm | Maximum area: full-field UV marking on large flat parts |
Configuration and capability summary
| Configuration | Head | Software | Use case |
|---|---|---|---|
| Base (standard) | Sino-Galvo SG7110 | EZCad 2 (USB), LightBurn (via adapter) | Flat UV marking on glass, ceramic, plastics, coated metals |
| 3D upgrade (USD 5,500) | Feeltek FR10-U | LenMark (Feeltek) | Curved or 3D UV workpieces in production volume |
The 3D upgrade is installed at the factory at the time of order. Adding it later requires shipping the head back as a service exchange. If you know at purchase that your UV work will include curved workpieces in production volume, configure the upgrade at checkout.
Shipping and delivery
Lead time: 3 to 4 weeks factory build. UV sources have lower JPT production volume than fiber.
Shipping: Free DDP to USA, Canada, EU 27 with all customs and duties included. Free shipping rest of world; buyer handles customs at destination. The 10W UV crate is heavier than 5W because of the integrated chiller (approximately 42 to 48 kg shipping weight). DDP transit is approximately 30 days by sea freight to US and Canada or 20 days by rail freight to EU 27, with customs and import duties included in the price. CIF air freight is available worldwide at 12 to 15 days transit if you prefer faster delivery and handle customs clearance yourself.
Crate: curbside standard; lift-gate available on request and reasonable at this weight. Full freight terms on the shipping policy page.
Warranty
18-month warranty on JPT UV source and machine, including the integrated chiller as part of the machine assembly. The 18-month term applies across our entire UV catalog and reflects UV diode service-life physics; UV diodes have shorter rated lives than fiber sources, and our warranty matches realistic expectations rather than overselling.
30-day defect return window. We cover return freight in the original crate. Full text on the returns and warranty page.
Frequently asked questions
Is the 10W UV really 2x faster than the 5W on production work?
Roughly 80% to 100% faster on typical glass and plastic marking workloads, depending on the material and mark depth. The 10W has double the average power and a wider frequency range (40-300 kHz versus 5W’s 20-200 kHz), which together compound for production cycle time improvements.
What chiller maintenance does the 10W UV need?
The 500W chiller is sealed and uses distilled water. Visual inspection every 6 to 12 months depending on duty cycle. The chiller filter and reservoir are documented in the quick-start guide. The chiller is included with the machine; no external water plumbing is required.
Can the 10W UV mark metal?
Yes but slowly. UV at 355 nm is not the right wavelength for metal marking; fiber laser at 1064 nm is far more efficient on metal. The 10W UV is the right choice for non-metal materials where fiber cannot work cleanly.
How does it handle high-volume PCB serialization?
Production-grade. The 10W UV with line-speed integration handles PCB serialization workloads at 200 to 600 boards per hour depending on mark size and complexity. UV is the standard wavelength for electronics marking because it does not damage thin conductor traces.
Delivery timeline and customs?
5 to 7 weeks total: factory build 3 to 4 weeks; DDP transit is approximately 30 days by sea freight to US and Canada or 20 days by rail freight to EU 27, with customs and import duties included in the price. CIF air freight is available worldwide at 12 to 15 days transit if you prefer faster delivery and handle customs clearance yourself. DDP includes customs duties for US, Canada, and EU 27.
Is this a genuine JPT source?
Yes. JPT Seal-355-10S model code on source ID plate, verifiable against JPT’s published datasheet at en.jptoe.com. We are an authorized JPT distributor.
Production deployment notes
The 10W UV tier is popular with electronics manufacturers running PCB lines, medical device producers doing plastic UDI marking, glass marking shops moving from small-batch to production, and food packaging operators marking PET and polymer films. Email us if you want a parameter recipe consultation for your specific material before committing.
