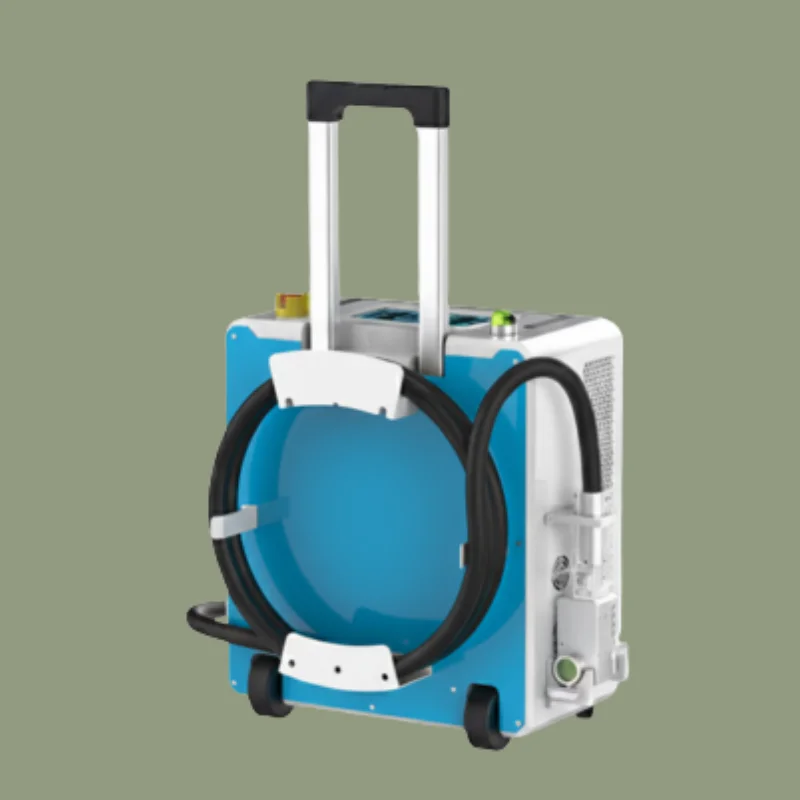

200W Pulse Laser Cleaning Machine (JPT YDFLP-CL-200-5-A)
$9,000.00
Elevate your walls with our stunning wall art collection. From vibrant abstracts to serene landscapes, find the perfect piece to complement your style and transform your space.
More views
Overview
The 200W Pulse Laser Cleaning Machine is the entry tier of our industrial cleaning catalog, built around the JPT Opto-Electronics YDFLP-CL-200-5-A source. This is a pulsed fiber laser specifically engineered for industrial cleaning rather than marking: wider beam diameter (6.5 mm) for area coverage, higher pulse energy (5 mJ), and air-cooled architecture for field deployability. The cleaning principle is photoablation: pulsed laser energy vaporizes rust, paint, oxidation, and contamination layers without damaging the base metal underneath. Chemical-free, abrasive-free, and dust-free compared to traditional cleaning methods.
The 200W tier is the entry point for industrial laser cleaning. Practical removal rates depend heavily on contamination type and thickness, but typical workloads at 200W: rust removal on light to medium scale (up to 100-200 microns of oxide), paint stripping on automotive and metalwork surfaces, weld surface preparation for industrial welding lines, mold cleaning for plastics injection molds, and pre-treatment cleaning before adhesive bonding or coating application. For thicker rust or paint layers and faster production rates, step up to the 300W or 500W cleaning tiers.
What you get from JPT Laser Shop: a verified JPT YDFLP-CL-200-5-A pulse fiber source with traceable serial, handheld cleaning gun, integrated control console, DDP shipping with customs and duties paid for US, Canada, and EU buyers. We are an authorized JPT distributor. Warranty terms for the cleaning catalog are confirmed at order; email us for the current 200W cleaning warranty schedule before placing your order.
Technical specifications
Laser source, JPT YDFLP-CL-200-5-A
| Source model | JPT YDFLP-CL-200-5-A (CL = cleaning series) |
|---|---|
| Laser type | Pulsed fiber laser (cleaning-class architecture) |
| Wavelength | 1064 nm |
| Average output power | > 200 W |
| Pulse width range | 2 to 500 ns (adjustable) |
| Pulse frequency range | 1 to 4000 kHz |
| Maximum pulse energy | 5 mJ |
| Beam quality M² | < 4 (intentionally wider than marking lasers for area coverage) |
| Output beam diameter | 6.5 plus-minus 1.0 mm |
| Output power stability | < 5% |
| Polarization | Random |
| Anti-high reflection | Yes (handles back-reflection from copper, brass, polished metal) |
| Cooling method | Air-cooled (no chiller required) |
| Supply DC voltage | 48 V |
| Maximum power consumption | < 800 W |
| Source net weight | 30 kg |
| Source dimensions | 523 × 430 × 133 mm |
| Delivery cable length | 5 m |
Complete machine
| Cleaning method | Chemical-free, abrasive-free pulsed laser ablation |
|---|---|
| Operating mode | Handheld cleaning gun (operator-controlled) |
| Power input | 110 to 240 V AC, 50/60 Hz |
| Cooling | Air-cooled (no chiller, no water lines) |
What this machine can do
Light to medium rust removal
Up to 100-200 micron oxide layers on automotive parts, light industrial machinery, restored metalwork. Steel, cast iron, and aluminum oxide layers vaporize cleanly without damaging base metal.
Automotive paint stripping
Spot stripping on automotive bodywork, motorcycle frames, and similar coated metal surfaces. The handheld gun gives the operator direct control over the cleaning area for selective stripping.
Pre-weld surface preparation
Cleaning oxidation, mill scale, and contamination from weld-prep surfaces. Faster than mechanical wire-brushing for production welding lines.
Injection mold cleaning
Plastics injection mold cavity cleaning between production runs. The 200W tier handles routine maintenance cleaning without disassembling the mold.
Pre-bonding surface preparation
Surface preparation before adhesive bonding, coating, or painting. Removes contamination layers that would compromise bond strength.
How this compares to adjacent models
| Specification | ★ This machine 200W (CL-200-5-A) |
300W (CL-300-13-A) | 500W (CL-500-30-W) |
|---|---|---|---|
| Best for | Light to medium rust + paint | Heavy industrial cleaning | Heaviest industrial restoration |
| Average power | > 200 W | > 300 W | > 500 W |
| Max pulse energy | 5 mJ | 13 mJ | 30 mJ |
| Pulse width range | 2-500 ns adjustable | 80-500 ns (narrower minimum) | 80-500 ns |
| Frequency range | 1-4000 kHz | 1-1000 kHz | 10-600 kHz |
| Cooling | Air-cooled | Air-cooled | Water-cooled |
| Power supply | 48 V DC | 24 V DC | 220 V AC |
| Source weight | 30 kg | 65 kg | 110 kg |
| Delivery cable | 5 m | 5 m | 10 m (QBH head) |
Practical guidance: choose 200W for light-to-medium rust, paint stripping on consumer or light industrial surfaces, and pre-treatment work. Step up to 300W for heavier industrial cleaning where the 5 mJ pulse energy becomes the bottleneck. The 500W is for restoration of thick coatings and heavy industrial workloads. Full comparison →
What’s in the box
- Handheld cleaning gun (operator-controlled, with safety interlock)
- Fiber delivery cable (5 m length)
- Control console (parameter adjustment for pulse width, frequency, power)
- Wavelength-matched safety glasses (1064 nm rated)
- Region power cable (US, EU, UK, AU plug at checkout)
- Quick-start guide + operator safety manual
- Warranty registration card (terms confirmed at order)
The cleaning catalog package is different from our marking machines. No lenses, no rotary, no motorized Z, no foot pedal. The handheld gun replaces those accessories because laser cleaning is operator-controlled, not galvo-driven.
Operating workflow
Operator workflow: set pulse parameters on the control console for the target contamination type (rust, paint, oxide), don wavelength-matched safety glasses, position the cleaning gun at a roughly 5 to 15 cm working distance from the target surface, trigger the laser, and sweep the cleaning gun across the contaminated area at a consistent rate. The pulsed laser vaporizes the contamination layer; ablation byproducts are carried away by the fume extraction (separate purchase, recommended for indoor use).
Plan 2 to 3 days of hands-on practice to develop parameter recipes for the specific contamination types you work with. Heavy rust needs different settings than light oxidation; aluminum paint stripping needs different settings than steel.
Shipping and delivery
Lead time: 2 to 3 weeks factory build.
Shipping: Free DDP to USA, Canada, EU 27 with all customs and duties paid by us. Free shipping rest of world; buyer handles customs at destination. The 200W cleaning machine crate is heavier than our marking machines because the source itself is 30 kg (approximately 60 to 70 kg shipping weight). DDP transit is approximately 30 days by sea freight to US and Canada or 20 days by rail freight to EU 27, with customs and import duties included in the price. CIF air freight is available worldwide at 12 to 15 days transit if you prefer faster delivery and handle customs clearance yourself.
Crate: curbside standard; lift-gate recommended for receiving without a loading dock. Full freight terms on the shipping policy page.
Warranty
Cleaning machine warranty terms are confirmed at the time of order. The cleaning catalog warranty schedule is being finalized; email us before ordering for current warranty information specific to the 200W cleaning machine. Our marking machines carry 2 to 3 year warranties depending on source tier; cleaning catalog warranty terms are within similar bracket but require sales confirmation per SKU.
30-day defect return window applies across our entire catalog including the cleaning machines. We cover return freight in the original crate when a defect is confirmed. Full text on the returns and warranty page.
Frequently asked questions
Does the 200W laser cleaner really remove rust without damaging the metal?
Yes when operated correctly. Laser cleaning relies on the pulsed energy being absorbed by the contamination layer (rust, paint, oxide) at a rate that vaporizes it before significant energy transfers to the base metal underneath. The base metal acts as a heat sink and reflective surface, so it sees minimal heating. Operator parameter choice matters: too much power or too slow sweep speed can mark the metal; the right settings remove only the contamination.
What thickness of rust can a 200W laser clean?
Practical rate depends on contamination type. For typical surface rust on steel, 200W handles up to 100-200 microns of oxide layer at production-feasible speeds (a few square cm per minute). Thicker rust scales (millimeter-thick scale on heavy industrial parts) need 300W or 500W tiers. Light surface oxidation cleans very quickly.
Is laser cleaning really chemical-free?
Yes. The cleaning process is photoablation, which vaporizes the contamination layer through pulsed laser energy. No chemicals, no abrasive media (sandblasting), no solvents. The ablation byproducts are vaporized contamination that requires fume extraction for indoor use but generates no liquid waste or hazardous chemical disposal.
Do I need fume extraction?
Yes for indoor use. Vaporized rust, paint, and contamination need extraction to keep the work environment safe. Fume extraction units are a separate purchase; we can recommend appropriate fume extractors at order time depending on your typical cleaning work and ventilation setup.
How long until I receive the 200W cleaning machine?
5 to 7 weeks total. Factory production 2 to 3 weeks; DDP transit is approximately 30 days by sea freight to US and Canada or 20 days by rail freight to EU 27, with customs and import duties included in the price. CIF air freight is available worldwide at 12 to 15 days transit if you prefer faster delivery and handle customs clearance yourself.
Are import duties really included?
Yes for US, Canada, EU 27. DDP shipping covers customs duties and import tariffs. Outside DDP zones, free shipping but customs is the buyer’s responsibility at destination.
Production deployment notes
200W laser cleaning machine buyers are typically restoration shops doing automotive and motorcycle work, small industrial maintenance shops handling pre-weld surface prep, plastics manufacturers cleaning injection molds between runs, and metalwork shops doing routine rust removal. For heavier industrial cleaning workloads (millimeter-thick scale, multi-shift production cleaning lines), step up to 300W or 500W. Email us with your specific cleaning task and we can recommend the right tier.
