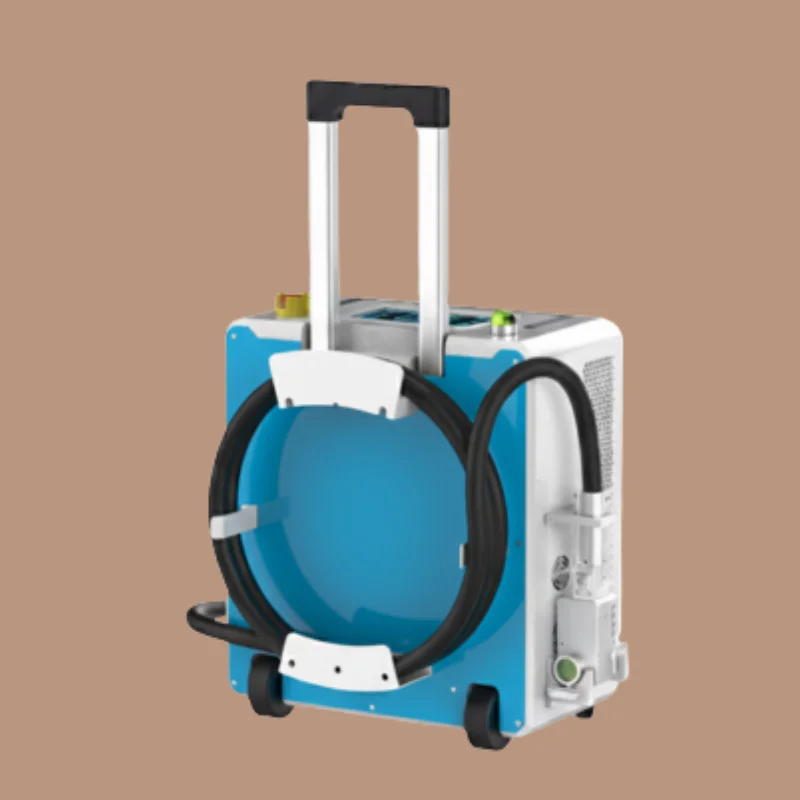

300W Pulse Laser Cleaning Machine (JPT YDFLP-CL-300-13-A)
$11,000.00
Elevate your walls with our stunning wall art collection. From vibrant abstracts to serene landscapes, find the perfect piece to complement your style and transform your space.
More views
Overview
The 300W Pulse Laser Cleaning Machine is the mid-tier in our industrial cleaning catalog, built around the JPT YDFLP-CL-300-13-A source. The 300W steps up from the 200W in two key ways: 13 mJ maximum pulse energy (versus 200W’s 5 mJ, more than 2.5x higher peak energy per pulse), and a narrower minimum pulse width of 80 ns (versus 200W’s 2 ns minimum). The combination means the 300W delivers more energy per pulse at slightly longer pulses, which is optimal for heavier rust and paint layers where the contamination needs more energy per shot to fully ablate.
Production buyers reach the 300W tier when the 200W’s 5 mJ pulse energy becomes the cleaning bottleneck. Practical workloads at 300W: heavy industrial rust (200-500 micron oxide scale), thick paint coatings (multi-layer industrial finishes), oxide layer removal from cast iron parts, marine industry rust restoration, restoration of agricultural machinery and heavy equipment, and pre-coat preparation on large industrial surfaces.
What you get from JPT Laser Shop: a verified JPT YDFLP-CL-300-13-A source with traceable serial, handheld cleaning gun, control console, DDP shipping with customs and duties paid for US, Canada, and EU buyers. Note that the 300W tier uses a 24 V DC supply (different from the 200W’s 48 V DC) which is a JPT spec quirk for the cleaning catalog. Warranty terms confirmed at order; email us for the current 300W cleaning warranty schedule.
Technical specifications
Laser source, JPT YDFLP-CL-300-13-A
| Source model | JPT YDFLP-CL-300-13-A |
|---|---|
| Laser type | Pulsed fiber laser (cleaning-class) |
| Wavelength | 1064 nm |
| Average output power | > 300 W |
| Pulse width range | 80 to 500 ns (narrower minimum than 200W which starts at 2 ns) |
| Pulse frequency range | 1 to 1000 kHz (narrower than 200W’s 1-4000 kHz) |
| Maximum pulse energy | 13 mJ (2.6x the 200W’s 5 mJ) |
| Beam quality M² | < 14 (much wider than 200W’s < 4; tradeoff for high pulse energy) |
| Output beam diameter | 6.5 plus-minus 1.0 mm |
| Output power stability | < 5% |
| Cooling method | Air-cooled |
| Supply DC voltage | 24 V (different from 200W which uses 48 V) |
| Maximum power consumption | 1500 W |
| Environmental supply current | 63 A |
| Source net weight | 65 kg |
| Source dimensions | 558 × 378.5 × 425 mm |
| Delivery cable | 5 m |
Complete machine
| Cleaning method | Chemical-free, abrasive-free pulsed ablation |
|---|---|
| Operating mode | Handheld cleaning gun, operator-controlled |
| Power input | 220 V AC, 50/60 Hz |
| Cooling | Air-cooled |
What this machine can do
Heavy industrial rust removal
200-500 micron oxide scale on heavy industrial parts, agricultural machinery, marine equipment. The 13 mJ pulse energy handles thick rust layers in fewer passes than 200W.
Thick paint coating removal
Multi-layer industrial paint finishes, marine paint, agricultural equipment paint stripping. The higher pulse energy strips thicker coatings in fewer passes.
Cast iron oxide layer removal
Foundry cast iron parts, engine blocks, industrial castings. Higher pulse energy needed because cast iron oxide scale is denser than steel oxide.
Marine industry restoration
Boat hull restoration, marine equipment rust removal, dock and harbor infrastructure cleaning. Saltwater corrosion is heavier than fresh-water rust and needs the higher pulse energy.
Agricultural equipment restoration
Tractor body and frame restoration, harvesting equipment rust removal, agricultural machinery refurbishment. Heavy-duty restoration workloads.
How this compares to adjacent models
| Specification | 200W (CL-200-5-A) | ★ This machine 300W (CL-300-13-A) |
500W (CL-500-30-W) |
|---|---|---|---|
| Best for | Light-medium rust, paint | Heavy industrial cleaning | Heaviest restoration |
| Average power | > 200 W | > 300 W | > 500 W |
| Max pulse energy | 5 mJ | 13 mJ | 30 mJ |
| Pulse width minimum | 2 ns | 80 ns | 80 ns |
| Frequency range | 1-4000 kHz | 1-1000 kHz | 10-600 kHz |
| Cooling | Air-cooled | Air-cooled | Water-cooled |
| Power supply | 48 V DC | 24 V DC | 220 V AC |
| Source weight | 30 kg | 65 kg | 110 kg |
Practical guidance: choose 300W when 200W’s 5 mJ pulse energy is the bottleneck on heavier rust or thicker paint workloads. The 300W’s 13 mJ peak energy is the inflection point where industrial-grade cleaning starts. Step up to 500W for restoration of multi-millimeter thick coatings and the heaviest industrial work. Full comparison →
What’s in the box
- Handheld cleaning gun (operator-controlled, safety interlock)
- Fiber delivery cable (5 m length)
- Control console (parameter adjustment)
- Wavelength-matched safety glasses (1064 nm)
- Region power cable (220 V AC input required)
- Quick-start guide + operator safety manual
- Warranty registration (terms confirmed at order)
Operating workflow
Same workflow pattern as the 200W cleaning machine: parameter set on console, operator wears safety glasses, handheld gun positioned at 5-15 cm working distance, sweep across contaminated surface. The 300W’s higher pulse energy means slower sweep rates are tolerable on heavy contamination because more energy per shot does the work.
Parameter tuning at 300W is more demanding than at 200W because the higher pulse energy can mark or damage the base metal if settings are too aggressive. Plan 3 to 5 days of hands-on practice for parameter recipes on your specific contamination types.
Shipping and delivery
Lead time: 3 to 4 weeks factory build. The 300W cleaning source has lower production volume than the 200W tier.
Shipping: Free DDP to USA, Canada, EU 27. Free shipping rest of world. The 300W cleaning machine is significantly heavier than the 200W because of the larger source (~110 to 130 kg shipping weight). DDP transit is approximately 30 days by sea freight to US and Canada or 20 days by rail freight to EU 27, with customs and import duties included in the price. CIF air freight is available worldwide at 12 to 15 days transit if you prefer faster delivery and handle customs clearance yourself.
Crate: lift-gate delivery strongly recommended at this weight. Full freight terms on the shipping policy page.
Warranty
300W cleaning machine warranty terms confirmed at the time of order. Email us for current 300W cleaning warranty schedule before ordering.
30-day defect return window applies. We cover return freight in original crate when a defect is confirmed by engineering. Full text on the returns and warranty page.
Frequently asked questions
Why does the 300W have higher pulse energy but narrower pulse width range?
JPT designed the CL-300-13-A specifically for heavy cleaning, where the high-energy long-pulse regime is optimal. Short pulses (sub-80 ns) are useful for fine-detail marking but not for industrial cleaning where you want to deliver maximum energy per shot to a wider area. The 200W tier keeps the 2 ns minimum pulse width because it serves lighter cleaning workloads where shorter pulses can be useful for delicate surfaces.
Why does the 300W use 24V DC versus 200W’s 48V DC?
JPT spec quirk; the CL-300-13-A internal architecture is optimized at 24 V DC for the higher pulse energy operation. This is a published JPT specification, not a machine-design choice on our end. The 300W consumes 1500 W average versus 200W’s 800 W (much higher), drawing more current at the lower voltage.
What’s the practical throughput on heavy rust?
Highly dependent on rust thickness, base material, and surface geometry. Rough rates for medium-heavy rust (200-400 micron oxide scale): 10-30 square centimeters per minute at production speeds. The 300W finishes typical industrial equipment restoration jobs roughly 50-70% faster than the 200W on heavy rust workloads.
Is the 300W appropriate for automotive restoration?
For heavy restoration projects (old vehicles with thick rust and paint), yes. For typical automotive paint stripping or light rust, the 200W is more economical and provides the necessary capability without overkill. The 300W shines on heavy-duty restoration where 200W cycle times are too long.
How long until delivery?
6 to 8 weeks total. Factory build 3 to 4 weeks; DDP transit is approximately 30 days by sea freight to US and Canada or 20 days by rail freight to EU 27, with customs and import duties included in the price. CIF air freight is available worldwide at 12 to 15 days transit if you prefer faster delivery and handle customs clearance yourself.
Are duties really included?
For US, Canada, EU 27, yes. DDP shipping covers customs duties and import tariffs. Outside DDP zones, free shipping but customs is your responsibility.
Production deployment notes
300W cleaning machine buyers are heavy industrial restoration shops, marine industry contractors, agricultural equipment refurbishers, and industrial maintenance operations. The 300W is the practical “industrial-grade” cleaning tier where output justifies the capital cost. Email us for a workflow consultation if you’re sizing between 200W, 300W, and 500W cleaning tiers.
