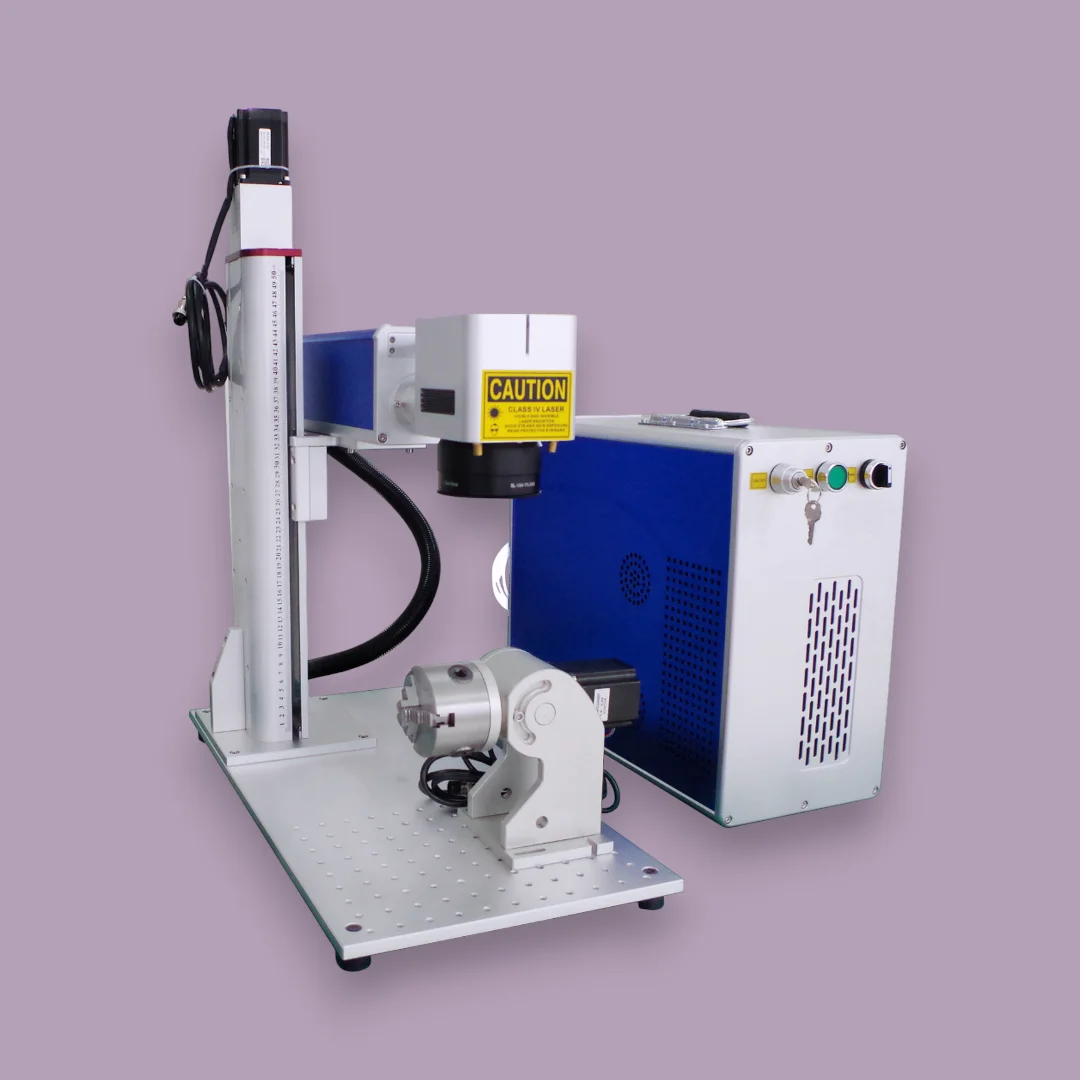

120W MOPA M7 Fiber Laser Machine
$7,900.00
Elevate your everyday life with our Home & Living collection. Discover a wide range of stylish and functional products designed to enhance your home and make your life easier. From cozy bedding and elegant décor to kitchen essentials and storage solutions, we have everything you need to create a space you love.
More views
Overview
The 120W MOPA M7 is the closest sibling to our flagship 100W tier. Source YDFLP-120-M7-M-R, no-prefix M7 architecture, same physical chassis as the 100W (13.2 kg source, 338 × 280 × 112 mm), same 48V supply, same MOPA pulse range, same 3-year warranty. The only meaningful difference is 20% more average power, which translates into measurably faster cycle times on production marking but does not unlock new application categories.
Most production shops choose 120W over 100W in one of three scenarios. First, their 100W workload is hitting throughput limits (running at 80% duty cycle or higher every shift) and the next logical step is more power. Second, they want headroom for occasional deeper engraving on harder steel where 100W gets thermally limited. Third, they want to standardize on a single source SKU for multiple machines and 120W gives more margin for varied work. Note that the 120W does NOT cut metal meaningfully thicker than the 100W (galvo geometry caps the cutting envelope around 0.5 to 0.8 mm) and the beam quality M² less than 1.4 is identical to the 100W.
What you get from JPT Laser Shop: a M7 source with traceable serial number (the YDFLP-120-M7-M-R, the no-prefix M variant), the Sino-Galvo SG7110 production scanning head, DDP shipping with customs and duties paid by us for US, Canada, and EU buyers, and the 3-year warranty on both the M7 source and machine. The 120W shares the warranty and chassis with the 100W; for shops running both, parts and service profiles match.
Technical specifications
Laser source, JPT YDFLP-120-M7-M-R
| Source model | JPT YDFLP-120-M7-M-R |
|---|---|
| Architecture | MOPA, no-prefix M7 (no E prefix) |
| Average output power | > 120 W |
| Wavelength | 1064 nm |
| Pulse width range | 2 to 500 ns (adjustable) |
| Pulse frequency range | 1 to 4000 kHz |
| Maximum pulse energy | 1.5 mJ |
| Beam quality M² | < 1.4 |
| Output beam diameter | 7 ± 0.5 mm |
| Output power stability | < 5% |
| Cooling method | Air-cooled |
| Supply DC voltage | 48 V |
| Maximum power consumption | < 450 W |
| Environmental supply current | > 9 A |
| Source net weight | 13.2 kg (same chassis as 100W M7) |
| Source dimensions | 338 × 280 × 112 mm (same as 100W M7) |
| Armored cable length | 3 m |
Galvo scanner + complete machine
| Scanner | Sino-Galvo SG7110, 10 mm aperture, ± 11° scan angle |
|---|---|
| Marking speed | up to 6000 mm/s |
| Working area (175 mm lens) | 175 × 175 mm; varies with 70/110/210/300 mm lens choice |
| Power input | 110 to 240 V AC, 50/60 Hz universal |
| Cooling | Air-cooled (no chiller) |
| Software included | EZCad 2 and EZCad 3 |
| Warranty | 3 years on JPT M7 source and machine |
What this machine can do
Application range is identical to the 100W M7 (color marking, jewelry, watch parts, electronics, light deep engraving, thin metal cutting) at slightly higher throughput. The 20% power bump is most visible in production-volume cycle times, not in expanding to new work categories.
Production color marking
Stainless tumblers, watch parts, branded hardware at 150 to 300 units per shift. 20% throughput increase versus 100W on the same workpieces and parameter sets.
Deeper engraving on hardened steel
The 20% power headroom lets the 120W reach roughly 10% more depth in the same cycle time on hardened tool steel and 4140-class alloys versus the 100W.
Production line serialization
Data matrix codes and serialized variable text on metal parts at line speed. Duty cycle margin is comfortable at the 120W tier for multi-shift production.
Mid-volume jewelry production
Same beam quality as the 100W (M² less than 1.4) so jewelry detail is identical; the 120W just gets more pieces through per shift.
Thin metal cutting
Stainless 0.3 to 0.8 mm, brass and copper 0.2 to 0.5 mm. Same envelope as the 100W; the 120W cuts slightly faster but the maximum thickness is galvo-limited, not power-limited.
How this compares to adjacent models
| Specification | 80W M7 | 100W M7 | ★ This machine 120W M7 |
200W M7 |
|---|---|---|---|---|
| Best for | No-prefix M7 entry | Color marking sweet spot | Higher throughput, same chassis as 100W | Industrial production tier |
| Average power | > 80 W | > 100 W | > 120 W | > 200 W |
| Beam M² | < 1.4 | < 1.4 | < 1.4 | < 1.6 |
| Source weight | 8.5 kg | 13.2 kg | 13.2 kg (same as 100W) | 24.8 kg |
| Chassis size | 325 × 260 × 75 mm | 338 × 280 × 112 mm | 338 × 280 × 112 mm (same as 100W) | 430 × 351 × 133 mm |
| Cooling | Air-cooled | Air-cooled | Air-cooled | Air-cooled |
| Warranty | 3 years | 3 years | 3 years | 3 years |
Practical guidance: choose 120W over 100W when production throughput is the bottleneck on your existing workload. Choose 100W if budget matters more than 20% throughput because the 100W is the most popular SKU in our catalog (more support content, more reference customers). Step up to 200W when the work itself changes (heavier deep engraving on cast iron, thicker thin-metal cutting). See the full fiber laser comparison →
What’s in the box
- 2 quartz (fused-silica) field lenses of your choice from 70, 110, 175, 210, or 300 mm
- 1 rotary attachment of your choice: D60, D80, or D100
- Motorized Z-axis
- Wavelength-matched safety glasses
- Foot pedal
- Marking head with lens fitted, USB + region power cable
- EZCad 2 + EZCad 3 software USB key
- Quick-start guide, cleaning kit, spare lens wipes
- 3-year warranty registration
Optional checkout upgrades: 2.5D EZCad 3 Z-control unlock (USD 750), Feeltek dynamic-focus 3D head (USD 5,500).
Software and upgrade options
This machine ships with the standard Sino-Galvo SG7110 galvo head and EZCad 2 software included on USB. Two optional factory upgrades extend what the machine can do; either can be configured at the time of order.
Base configuration: SG7110 head + EZCad 2 + LightBurn via adapter
The standard configuration covers all flat-surface 2D marking applications. EZCad 2 is the most widely used fiber laser control software in production environments, with full support for variable text, serialized marking, photo engraving, vector imports, and TCP/IP and I/O integration for production lines. LightBurn is supported via a USB adapter that ships with the machine for operators who prefer that workflow.
2.5D upgrade: BJJCZ G3 Pro head + EZCad 3 (USD 750)
This upgrade replaces the SG7110 with the BJJCZ G3 Pro head and adds EZCad 3 software (included). What you gain: stepped Z-axis control during a single design pass. The laser can mark at two or three different focal heights on the same workpiece without manually re-cranking the Z between layers. Right for stepped workpieces, terraced parts, deep-engraving multi-pass jobs, and any application where distinct height layers need to be marked in one sequence.
Full 3D upgrade: Feeltek FR10-F dynamic-focus head + LenMark (USD 5,500)
The FR10-F steers focus in software (LenMark) and uses no swappable field lens — it is offered in 100 × 100 mm and 200 × 200 mm field sizes.
This upgrade replaces the SG7110 with the Feeltek FR10-F 3D dynamic-focus head and adds LenMark software (Feeltek’s controller-side 3D mapping and design-wrap software). What you gain: continuous focal-length adjustment as the galvo mirrors point the beam across a curved or three-dimensional workpiece. The beam stays at true focus across the full surface in real time, not just one calibrated band.
When to choose the 3D upgrade: production volume on curved workpieces. If you are running dozens to thousands of curved parts per shift (rounded glass bottles, watch case-backs, ceramic vials, headphone shells, lampshades, contoured metal parts), the 3D head pays back through faster cycle time and consistent edge-to-edge focus quality. For one-off curved jobs the standard fixed-focus head with manual Z repositioning still works, but the cycle time per piece is significantly longer. The math typically points to the 3D upgrade once you commit to a recurring production run on curved parts.
Our 3D engraving guide walks through the complete Feeltek-plus-LenMark workflow from CAD model to engraved curved part. The guide is written for UV but the CAD-to-LenMark process is identical on fiber.
Marking area by lens
The included lens choice determines the marking area on the workpiece. Every JPT machine ships with two lenses of your choice from the standard set; the 175 mm lens is included by default unless you specify otherwise at checkout.
| Lens focal length | Marking area | Best for |
|---|---|---|
| 70 mm | 70 x 70 mm | Small jewelry, watch components, fine detail at maximum resolution |
| 110 mm | 110 x 110 mm | Medium parts: dog tags, challenge coins, small electronic enclosures |
| 175 mm (default) | 175 x 175 mm | General production: tumblers, plates, mid-size parts, the most common pick |
| 210 mm | 210 x 210 mm | Larger flat parts: serving trays, panels, batch marking |
| 300 mm | 300 x 300 mm | Maximum area: large panels, batch grids, low-detail full-field engraving |
Shorter focal lengths give finer beam spots and higher detail resolution at the cost of a smaller marking area. Longer focal lengths cover more area at the cost of slightly softer detail. Most production shops run two lenses (one shorter, one longer) to cover the working range without swapping mid-job.
Configuration and capability summary
| Configuration | Head | Software | Use case |
|---|---|---|---|
| Base (standard) | Sino-Galvo SG7110 | EZCad 2 (USB), LightBurn (via adapter) | Flat-surface 2D marking |
| 2.5D upgrade (USD 750) | BJJCZ G3 Pro | EZCad 3 (USB) | Stepped or terraced workpieces, multi-height marking |
| 3D upgrade (USD 5,500) | Feeltek FR10-F dynamic-focus | LenMark (Feeltek) | Curved 3D workpieces in production volume |
Both upgrades are installed at the factory at the time of order. Adding either later requires shipping the machine back as a service exchange, which is doable but takes longer than ordering with the upgrade up front. If you know at purchase that you will be marking stepped or curved workpieces in volume, configure the upgrade at checkout.
Shipping and delivery
Lead time: 2 to 3 weeks factory build, same as 100W M7 because the source has equivalent JPT production volume.
Shipping: DDP free to US, Canada, and the EU 27. Free shipping rest of world. The 120W ships in the same crate as the 100W (~45 kg shipping weight) because the chassis is identical. DDP transit is approximately 30 days by sea freight to US and Canada or 20 days by rail freight to EU 27, with customs and import duties included in the price. CIF air freight is available worldwide at 12 to 15 days transit if you prefer faster delivery and handle customs clearance yourself.
Crate: curbside standard, lift-gate on request. Full freight terms on the shipping policy page.
Warranty
3-year warranty on JPT M7 source plus machine. Same coverage and terms as the 100W M7. The JPT M7 source is rated for 100,000 hours continuous operation; warranty covers manufacturer defects and source failure not caused by misuse.
30-day defect return window from delivery. We cover return freight in the original crate when a defect is confirmed by our engineering team. Full text on the returns and warranty page.
Frequently asked questions
Is 120W meaningfully different from 100W in real use?
For cycle time: yes, roughly 15 to 20% faster on production marking workloads. For application range: no, both machines cover the same range. For chassis and integration: identical, same physical box, same software. The 120W is the right call when your 100W is the production throughput bottleneck.
Can I upgrade my 100W machine to 120W in the field?
No. The source itself is different hardware (YDFLP-100-M7-M-R versus YDFLP-120-M7-M-R) and is not field-swappable. Buying a 120W machine outright is the path; the 100W you already own keeps running, doesn’t lose value as a second-machine asset.
Is the cooling really still air-cooled at 120W?
Yes. JPT specifies the YDFLP-120-M7-M-R as air-cooled, the same as the 100W and other M7 tiers up through 350W. No external chiller is needed. Ambient temperature should stay within 0 to 40 °C.
What is the power consumption difference vs 100W?
The 120W draws up to 450 W versus the 100W’s 400 W (about 12% more). At 8-hour shifts and US $0.15/kWh, that’s roughly $15 per year of additional electricity. Trivial compared to the throughput gain.
Does the 120W cut thicker metal than the 100W?
Marginally. The galvo geometry caps the cutting envelope around 0.5 to 0.8 mm regardless of power. The 120W cuts faster at the same thickness but the maximum thickness ceiling is set by beam quality and galvo, not by power. For sheet metal cutting above 1 mm you want a CNC fiber laser cutter.
How long until I receive the machine?
5 to 7 weeks total. Factory production 2 to 3 weeks; DDP transit is approximately 30 days by sea freight to US and Canada or 20 days by rail freight to EU 27, with customs and import duties included in the price. CIF air freight is available worldwide at 12 to 15 days transit if you prefer faster delivery and handle customs clearance yourself.
Are duties really included for international buyers?
For US, Canada, and the EU 27: yes. DDP shipping covers customs duties and import tariffs as part of the purchase price. Outside DDP zones: free shipping but customs is the buyer’s responsibility at destination.
Production deployment notes
Common 120W buyers are shops already running a 100W M7 who have outgrown its production capacity. Many are operating two machines (100W + 120W) so they can run different parameter sets on each without stopping to retune. Other 120W buyers are stepping up from 80W when they want the larger chassis form factor (same as 100W) for production-line integration. Email us if you want to talk to a current 120W operator about throughput economics.
